Solar Light Kits ready the range of various parts for you to design your own Solar Garden Lamp.
Solar Light Kit consist of Solar Panel, Battery, solar Controller, Led Lamps connected to a 5 meters weatherproof cable and.
All the mechanical and electrical connections are provided.
The electrical cables are of High quality, anti-aging, waterproof and anti-uv.
Solar Panel :
12 Volts, mono-crystalline solar cell with 17% efficiency that can be mounted to the pole.
The life span of the solar panels can reach 25 years. All come with 5 years Warrant.
Solar Controller
The solar controller coming with the follwing functions. Automatic light control and with timer
Overcharge and overdischarge fuction to prolong battery life span.
This controller can connect total up to 60W, 120W ...lights depend the requirement
The light span is 5 years, come with 1 years warranty
Battery :
Lead-acid battery, maintainance-free. Life span can reach 5 years. Come with 1 year Warranty.
The life span of the battery will be shorted if it does not keep at the designed charge level for considerable period.
2W Out-door LED spot lamp
* 1pcs LEDs inside Lamp Body.
* Make of Die-cast Aluminum.
* A 5M anti-aging,UV-proof cable for outdoor.
* Directly connected to controller.
* Light beam Color: Warm White/ Green/ White.
* Bulb housing : Base GU10
* Life span 20 000 to 50 000 hours with 3 years warranty.
price : $43.00

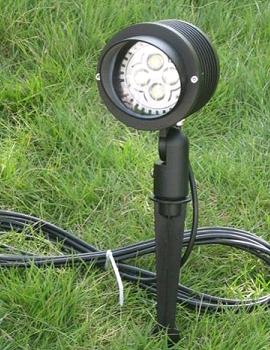

4W Out-door LED spot lamp.
* 3pcs LEDs inside Lamp Body.
* Make of Die-cast Aluminum.
* A 5M anti-aging,UV-proof cable for outdoor.
* Direct connected to controller.
* Light beam Color: Warm White/ Green/ White.
* Bulb housing : Base GU10
* Life span 20 000hours with 3 years warranty.
price : $55.00

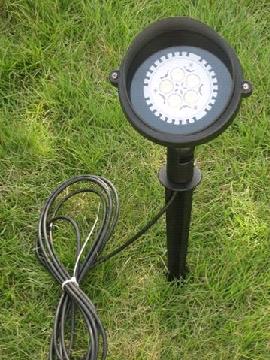

5W Out-door LED spot lamp
* 5W LEDs spot bulb inside Lamp Body.
* Make of Die-cast Aluminum.
* A 5M anti-aging,UV-proof cable for outdoor.
* Direct connected to controller.
* Light beam Color: Warm White.
* Bulb housing : Base MR16
* Life span 20 000 hours with 3 years warranty.
price : $55.00

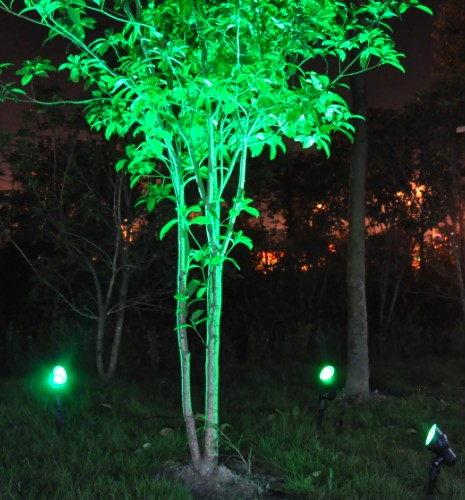

The effect that these lights do are show at the picture below.
The beam of the lamp is GREEN color.

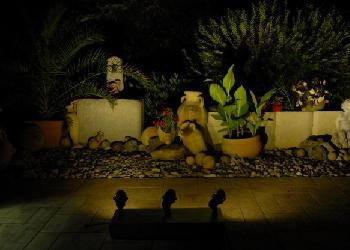

The color of the beam is Warm white.
The solar light system of 1 lamp of 2 watts Led
solar panel of 12 V 15 watts.
Battery of 12 v 14 A/H.
1 Led spot Light lamp of 2 watts LED Lamp.
With the controller and the pole.
The cost is $310.00.

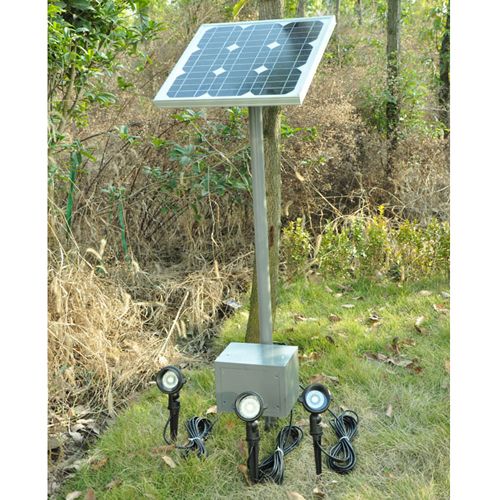

Solar light system of 3 lamps of 2 watts Led
solar panel of 12 V 35 watts.
Battery of 12 v 38 A/H.
3 Led spot Light Lamps of 2 watts LED.
With the controlller and the pole.
The cost is $630.00.

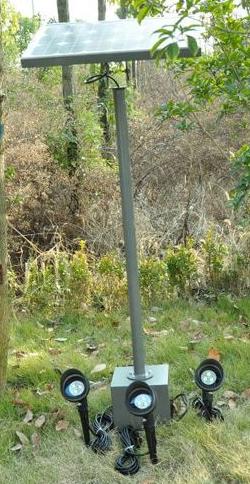

Solar light system of 3 lamps of 3 watts LED
Solar panel of 12 V 60 watts.
Battery of 12 v 65 A/H.
3 Led Spot Light Lamps of 3 watts LED.
With the controlller and the pole.
The cost is $930.00.
